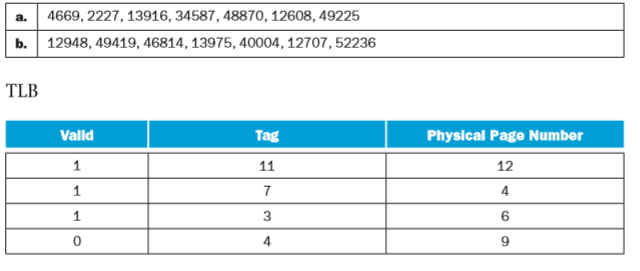

As described in Section 5.4, virtual memory uses a page table to track the mapping of virtual addresses to physical addresses. This exercise shows how this table must be updated as addresses are accessed. The following table is a stream of virtual addresses as seen on a system. Assume 4 KB pages, a 4entry fully associative TLB, and true LRU replacement. If pages must be brought in from disk, increment the next largest page number.
Given the address stream in the table, and the initial TLB and page table states shown above, show the final state of the system. Also list for each reference if it is a hit in the TLB, a hit in the page table, or a page fault.
