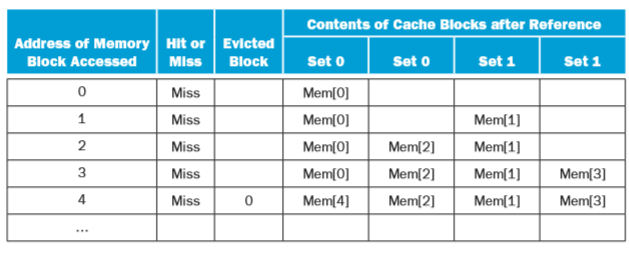

In this exercise, we will examine how replacement policies impact miss rate. Assume a 2way set associative cache with 4 blocks. You may find it helpful to draw a table like those found on page 482 to solve the problems in this exercise, as demonstrated below on the address sequence “0, 1, 2, 3, 4.”
The following table shows address sequences.
Address Sequence
a. 0, 2, 4, 8, 10, 12, 14, 16, 0
b. 1, 3, 5, 1, 3, 1, 3, 5, 3
Assuming an LRU replacement policy, how many hits does this address sequence exhibit?
